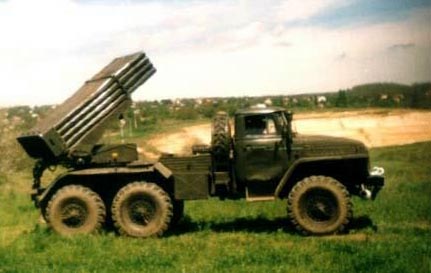

Function: 122mm self propelled rocket launcher.
Background: The BM-21 Grad (Hail) rocket launcher is the world's most widely-used rocket launcher system. Introduced to the Red Army in 1963 as a replacement for the BM-14 140mm rocket launcher, the BM-21's rockets carry the same sized warhead as the 140mm, and have a much longer range. In addition, because the rockets are smaller in diameter, more rockets can be carried per launcher. The BM-21 can be operated and fired from the cab, or it can be fired from up to 60 meters away remotely. All 40 rockets can be fired in 6 seconds or they can be fired singly or in groups at 0.5 second intervals. Reloading the launcher takes less than 8 minutes. The BM-21 fires a 122mm diameter rocket out to a range of 20,380 meters. Although the rockets are primarily fin stabilized, each launch tube is rifled to improve the accuracy of the rocket. In addition to HE-fragmentation, chemical, and incendiary warheads, the BM-21 is also capable of firing extended range munitions out to 36,000 meters. The BM-21 is currently in service with over 50 countries worldwide, and is manufactured in Russia, North Korea, Egypt, China and Czechoslovakia. Description: The BM-21 is a 40 round multiple launch rocket system mounted on the rear of a Ural-375D 6?6 cargo truck chassis. The rockets are stacked in 4 banks of 10 rockets apiece. Unlike other rocket launchers, there is no blast shielding around the cab of the transport vehicle. General Characteristics, BM-21 122mm Rocket Launcher Length: 23.89 feet (7.35 meters) Width: 7.8 feet (2.40 meters) Height: 10.04 feet (3.09 meters) Weight: 13.7 tons Cruising Range: 450 kilometers Speed: Maximum: 47mph (75kph) Off road: 22mph (35kph) Emplacent time: 3 minutes Displacement time: 2 minutes Rates of Fire: Maximum: 40 rockets in 6 seconds Sustained: Individual rockets at 0.5 second intervals Maximum Range: 20 km with conventional rockets 36 km with extended range rockets Introduction Date: 1963 Variants: BM-21V: 12-round launcher developed for use in Airborne units. BM-21B: 36-round launcher built on a 6x6 ZIL-131 cargo truck chassis. Grad-P: Single shot rocket launcher. 9A51 Prima: 50-round launcher built on a 6x6 ZIL-131 cargo truck chassis. BM-11: 30-round North Korean version. Type 81: 40-round Chinese version. Sakr-18: Egyptian version of the BM-21. The 122mm rockets fire 23 kg cluster munitions out to 20km. RM-70: Czechoslovakian version. Introduced in 1972, the RM-70 uses the same launcher as the BM-21, but is mounted on a TATRA 10 ton 8x8 cargo truck chassis. The TATRA has a fully armored and shielded cab and is capable of carrying an additional "pack" of 40 rockets. This pack can reduce loading time to less than 5 minutes. |
